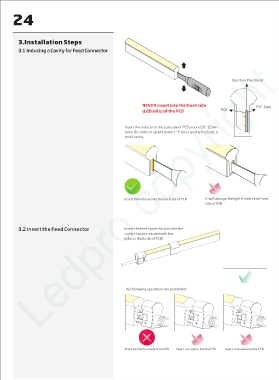

3.Installation Steps
3.1 Inducing a Cavity for Feed Connector

Ledpro copyright

Insertion Placement

NEVER insert into the front side PVC Tape
(LED side) of the PCB PCB

Insert the inducer to the backside of PCB around 10~12mm,
move the inducer up and down 3~5 times gently to create a
small cavity.

Insert the inducer into the backside of PCB It will damage the light if insert into front
side of PCB

3.2 Insert the Feed Connector Insert the feed connector pins into the
cavity that you created with the
inducer (backside of PCB)

The following operations are prohibited:

Insert into the front side of the PCB Insert crosswise into the PCB Insert crosswise into the PCB
