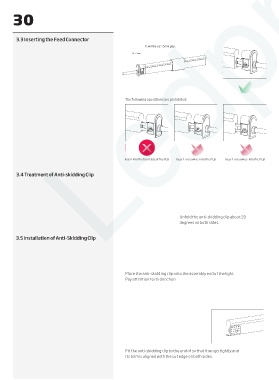

Page 30 - Series-3 Neon-Flex manual
P. 30
3.5 Installation of Anti-Skidding ClipLedpro copyright
30
3.3 Inserting the Feed Connector
It will be a 2~5mm gap.
W =2~5mm
The following operations are prohibited:
Insert into the front side of the PCB Insert crosswise into the PCB Insert crosswise into the PCB
3.4 Treatment of Anti-skidding Clip
Unfold the anti-skidding clip about 20
degrees on both sides.
Place the anti-skidding clip onto the assembly end of the light.
Pay attention to its direction
Fit the anti-skidding clip to the end of so that it wraps tightly and
its brim is aligned with the cut edge on both sides.
