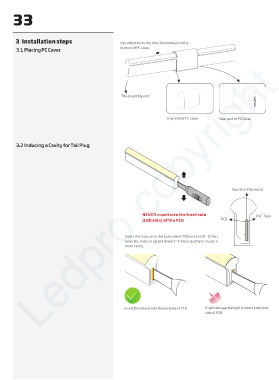

3. Installation steps Pay attention to the direction marked on the
bottom of PC cover.
3.1 Placing PC Cover

Ledpro copyright

The assembly end

Snap end of PC Cover Rear end of PC Cover

3.2 Inducing a Cavity for Tail Plug

Insertion Placement

NEVER insert into the front side PVC Tape
(LED side) of the PCB PCB

Insert the inducer to the backside of PCB around 10~12mm,
move the inducer up and down 3~5 times gently to create a
small cavity.

Insert the inducer into the backside of PCB It will damage the light if insert into front
side of PCB
