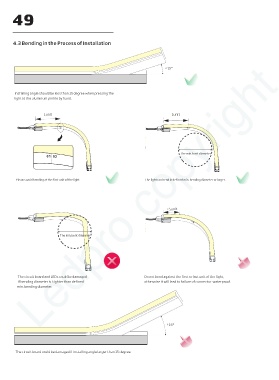

4.3 Bending in the Process of Installation
Ledpro copyright
<15°
Installing angle should be less than 15 degree when pressing the
light to the aluminum profile by hand.
1unit 1unit
01 02
01 02
The min.bent diameter
01 02
Please avoid bending at the first unit of the light. The light can bend in defined min. bending diameter or larger.
<1unit
01 02 01 02
The min.bent diameter
The circuit board and LEDs could be damaged Do not bend against the first or last unit of the light,
if bending diameter is tighter than defined otherwise it will lead to failure of connector waterproof.
min. bending diameter.
The circuit board could be damaged if installing angle larger than 15 degree.
