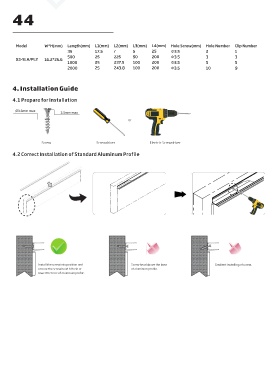

Page 44 - Series-3 Neon-Flex manual
P. 44
44 Ledpro copyright
Model W*H(mm) Length(mm) L1(mm) L2(mm) L3(mm) L4(mm) Hole Screw(mm) Hole Number Clip Number
35 17.5 / 5 25 Φ3.5 2 1
500 25 225 50 200 Φ3.5 3 3
S3-SLA/PL2 16.2*25.6
1000 25 237.5 100 200 Φ3.5 5 5
2000 25 243.8 100 200 Φ3.5 10 9
4. Installation Guide
4.1 Prepare for Installation
or
Screw Screwdriver Electric Screwdriver
4.2 Correct Installation of Standard Aluminum Profile
Install the screw into position and Screw head above the base Gradient installing of screw.
ensure the screw head is flush or of aluminum profile.
lower the base of aluminum profile.
