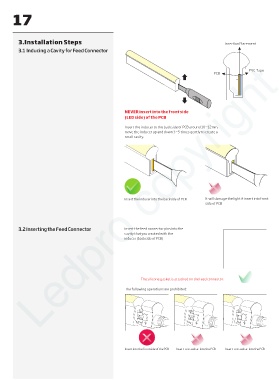

3.Installation Steps Insertion Placement
3.1 Inducing a Cavity for Feed Connector

Ledpro copyright
PVC Tape
PCB

NEVER insert into the front side
(LED side) of the PCB
Insert the inducer to the backside of PCB around 10~12mm,
move the inducer up and down 3~5 times gently to create a
small cavity.

Insert the inducer into the backside of PCB It will damage the light if insert into front
side of PCB

3.2 Inserting the Feed Connector Insert the feed connector pins into the
cavity that you created with the
inducer (backside of PCB)

The silicone gasket is attached on the feed connector.
The following operations are prohibited:

Insert into the front side of the PCB Insert crosswise into the PCB Insert crosswise into the PCB
