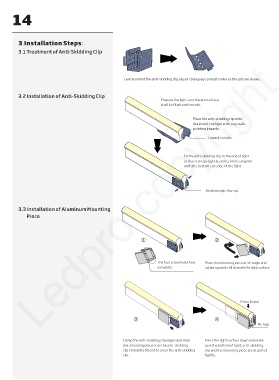

Page 14 - Series-3 Neon-Flex manual

14

3.Installation Steps:
3.1 Treatment of Anti-Skidding Clip

Ledpro copyright

Gently unfold the anti-skidding clip about 20 degrees on both sides as the picture shows.

3.2 Installation of Anti-Skidding Clip
Prepare the light, and the end surface
shall be flush and smooth.

Place the anti-skidding clip onto
the end of the light with tiny stabs
pointing inwards.
toward outside

Fit the anti-skidding clip to the end of light
so that it wraps tightly and its brim is aligned
with the bottom cut edge of the light.

Bottom edge line-up

3.3 Installation of Aluminum Mounting
Piece

① ②

The four screw holes face Place the mounting piece at 45° angle and
outwards. rotate upwards till it parallel to light surface

Press Down

③ ④
No Gap

Clamp the anti-skidding clip edges and slide Press the light surface down and make
the mounting piece onto the anti-skidding sure the bottom of light, anti-skidding
clip straightly till end to cover the anti-skidding clip and the mounting piece are attached
clip. tightly.
