Page 15 - Series-3 Neon-Flex manual

15

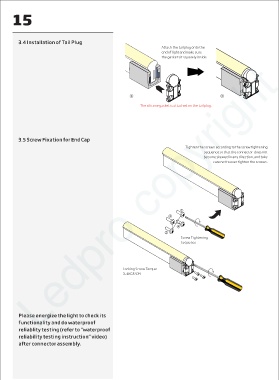

3.4 Installation of Tail Plug
Attach the tail plug onto the
end of light and make sure
the gasket sit squarely inside.
Ledpro copyright

① ②

The silicone gasket is attached on the tail plug.

3.5 Screw Fixation for End Cap
Tighten the screws according to the screw tightening
sequence so that the connector does not
become skewed in any direction, and take
care not to over tighten the screws.

①
③

④
②
Screw Tightening
Sequence

Locking Screw Torque:
3-4KGF/CM

Please energize the light to check its
functionality and do waterproof
reliablity testing (refer to "waterproof
reliability testing instruction" video)
after connector assembly.
