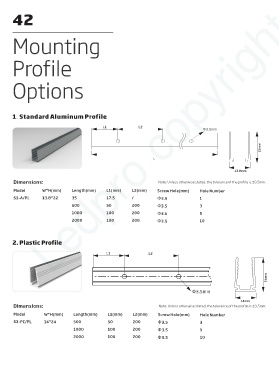

Page 42 - Series-3 Neon-Flex manual
P. 42
Ledpro copyright
42
Mounting
Profile
Options
1. Standard Aluminum Profile
L1 L2
Φ3.5mm
22mm
L
13.8mm
Dimensions: Note: Unless otherwise stated, the tolerance of the profile is ±0.5mm.
Model W*H(mm) Length(mm) L1(mm) L2(mm) Screw Hole(mm) Hole Number
S3-A/PL 13.8*22 35 17.5 / Φ3.5 1
500 50 200 Φ3.5 3
1000 100 200 Φ3.5 5
2000 100 200 Φ3.5 10
2. Plastic Profile
L1 L2
24mm
Φ3.5mm
14mm
Dimensions: Note: Unless otherwise stated, the tolerance of the profile is ±0.5mm.
Model W*H(mm) Length(mm) L1(mm) L2(mm) Screw Hole(mm) Hole Number
S3-PC/PL 14*24 500 50 200 Φ3.5 3
1000 100 200 Φ3.5 5
2000 100 200 Φ3.5 10
