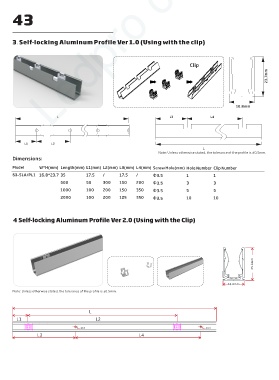

3. Self-locking Aluminum Profile Ver 1.0 (Using with the clip)
Clip
23.7mm
16.8mm
L L3 L4
L1 L2
L
Note: Unless otherwise stated, the tolerance of the profile is ±0.5mm.
Dimensions:
Model W*H(mm) Length(mm) L1(mm) L2(mm) L3(mm) L4(mm) Screw Hole(mm) Hole Number Clip Number
S3-SLA/PL1 16.8*23.7 35 17.5 / 17.5 / Φ3.5 1 1
500 50 300 150 200 Φ3.5 3 3
1000 100 200 150 350 Φ3.5 5 5
2000 100 200 125 350 Φ3.5 10 10
4 Self-locking Aluminum Profile Ver 2.0 (Using with the Clip)
25.6mm
16.2mm
Note: Unless otherwise stated, the tolerance of the profile is ±0.5mm.
L
L1 L2
Φ3.5 Φ3.5
L3 L4
