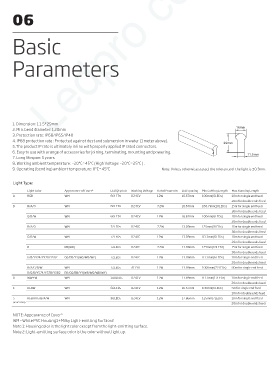

Page 6 - Series-3 Neon-Flex manual

3. Protection rate: IP68/IP65/IP40 Ledpro copyright

06

Basic

Parameters

1. Dimension: 1 1.5*29mm
16mm
2. Min. bend diameter: 1 20mm
4. IP68 protection rate : Protected against dust and submersion in water (1 meter above).
29mm
5.The product IP rate is ultimately in line with properly applied IP rated connectors.
01
6. Easy to use with a range of accessories for joining, terminating, mounting and powering.
11.5mm
7. Long lifespan: 5 years.
8. Working ambient temperature: -20°C~45°C (High Voltage: -20°C~25°C ) .
9. Operating (bending) ambient temperature: 0°C~45°C Note: Unless otherwise stated, the tolerance of the light is ±0.3mm.

Light Type: NFS3-Dome
Light Color Appearance of Cover* LED Qty/mtr Working Voltage Rated Power/m LED Spacing Min.Cutting Length Max.Running Length
A RGB WM 60LEDs D24CV 12W 16.67mm 100mm(6LEDs) 10m for single end feed
20m for double ends feed
B R/A/O WM 60LEDs D24CV 7.2W 16.67mm 166.7mm(10LEDs) 15m for single end feed
30m for double ends feed
G/B/W WM 60LEDs D24CV 12W 16.67mm 100mm(6LEDs) 10m for single end feed
20m for double ends feed
R/A/O WM 72LEDs D24CC 7.2W 13.89mm 125mm(9LEDs) 15m for single end feed
30m for double ends feed
G/B/W WM 72LEDs D24CC 12W 13.89mm 83.3mm(6LEDs) 10m for single end feed
20m for double ends feed
R RR(WR) 72LEDs D24CC 7.2W 13.89mm 125mm(10LEDs) 15m for single end feed
30m for double ends feed
G/B/Y574/Y578/Y582 GG/BB/YY(WG/WB/WY) 72LEDs D24CC 12W 13.89mm 83.3mm(6LEDs) 10m for single end feed
20m for double ends feed
R/A/G/B/W WM 72LEDs AC230 12W 13.89mm 1000mm(72LEDs) 80m for single end feed
R/G/B/Y574/Y578/Y582 RR/GG/BB/YY(WR/WG/WB/WY)
D WW+W WM 144LEDs D24CV 12W 13.89mm 83.3mm(12LEDs) 10m for single end feed
20m for double ends feed
E RGBW WM 60LEDs D24CV 12W 16.67mm 100mm(6LEDs) 5m for single end feed
10m for double ends feed
S RGB/R/G/B/A/W WM 56LEDs D24CV 12W 17.86mm 125mm(7LEDs) 10m for single end feed
(IC:UCS2903)
20m for double ends feed
NOTE: Appearance of Cover*
WM=White PVC Housing1+Milky Light-emitting Surface2
Note 1: Housing color is the light color except from the light-emitting surface.
Note 2: Light-emitting surface color is the color without light up.
