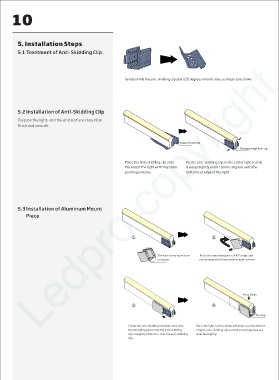

Page 10 - Series-3 Neon-Flex manual

10

5. Installation Steps
5.1 Treatment of Anti-Skidding Clip

Ledpro copyright

Gently unfold the anti-skidding clip about 20 degrees on both sides as the picture shows.

5.2 Installation of Anti-Skidding Clip

Prepare the light, and the end surface should be
flush and smooth.

toward outside
Bottom edge line-up

Place the anti-skidding clip onto Fit the anti-skidding clip to the end of light so that
the end of the light with tiny stabs it wraps tightly and its brim is aligned with the
pointing inwards. bottom cut edge of the light.

5.3 Installation of Aluminum Mount
Piece

① ②

The four screw holes face Place the mounting piece at 45° angle and
outwards. rotate upwards till it parallel to light surface.

Press Down
③ ④

No Gap
Clamp the anti-skidding clip edges and slide Press the light surface down and make sure the bottom
the mounting piece onto the anti-skidding of light, anti-skidding clip and the mounting piece are
clip straightly till end to cover the anti-skidding attached tightly.
clip.
