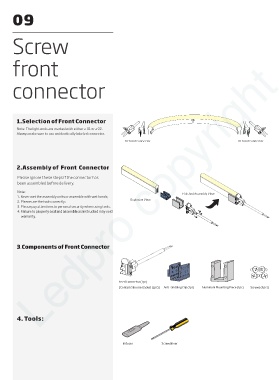

Page 9 - Series-3 Neon-Flex manual

09

Screw

front
Ledpro copyright

connector

1.Selection of Front Connector 01 02
Note: The light ends are marked with either a 01 or a 02. 02 02 01 01
Always make sure to use an identically labeled connector.
02 Front Connector 01 Front Connector

2.Assembly of Front Connector

Please ignore these steps if the connector has
been assembled before delivery.
Note:
Finished Assembly View
. 1 Never wet the assembly units or assemble with wet hands;
Explosive View
. 2 Please use the tools correctly;
. 3 Please pay attentions to personal security when using tools.
4. Failure to properly seal and assemble as instructed may void
warranty.

3.Components of Front Connector

Feed Connector (1pc)
[Contain Silicone Gasket (1pc)] Anti-skidding Clip (1pc) Aluminum Mounting Piece (1pc) Screws (4pcs)

4. Tools:

Inducer Screwdriver
